| 브랜드 이름: | ZI QIANG |
| 모델 번호: | ZQ 60 |
| MOQ: | 1 |
| 가격: | 45000 USD |
| 지불 조건: | t/t |

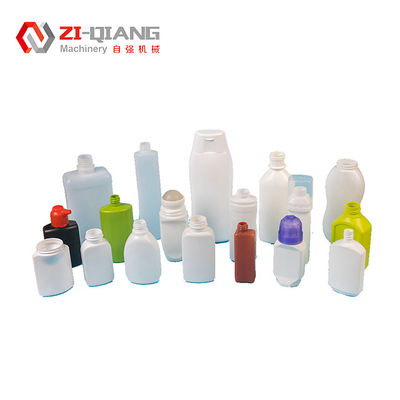

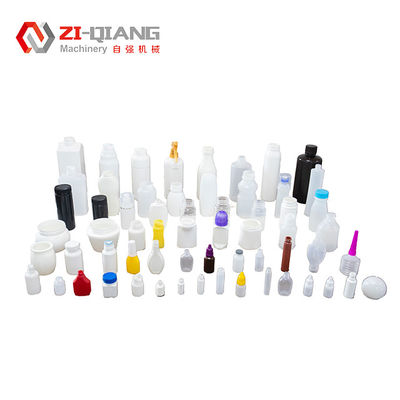

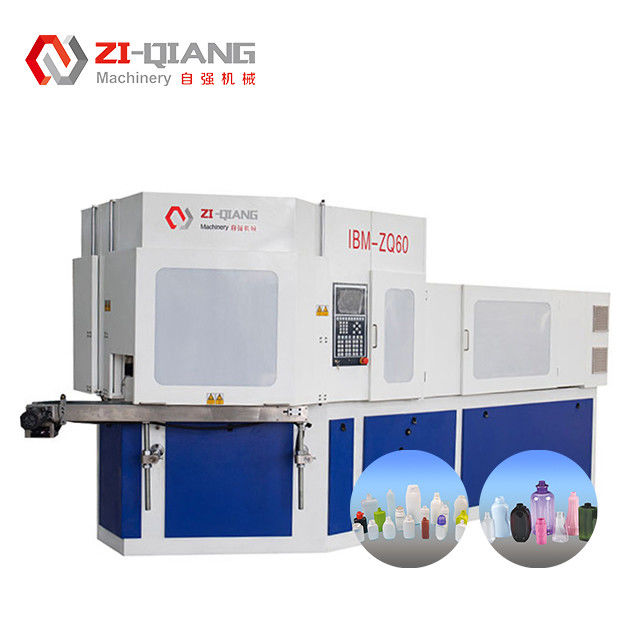

Specialized equipment for manufacturing plastic bottles, beverage containers, and cosmetic packaging with precision and efficiency.
| Item | Unit | ZQ60 |
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 45 |
| Screw L/D | % | 22:1 |
| Injection weight | g | 260 |
| Heating power | KW | 14 |
| Number of barrel zone | 3+N | |
| Injection stroke | mm | 160 |
| Clamping System | ||
| Clamping force of injection | KN | 600 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 100 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |
| Mould Specifications | ||
| Max.Platen size(L*W) | mm | 600*390 |
| Mold thickness | mm | 240 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 230 |
| Hydraulic System | ||
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 22 |
| Dry cycle | S | 4 |
| Total Power | KW | 37 |
| Operating power | % | 52-70 |
| Additional Specifications | ||
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 3.5*1.4*1.8 |
| Net weight | Ton | 5 |
|
