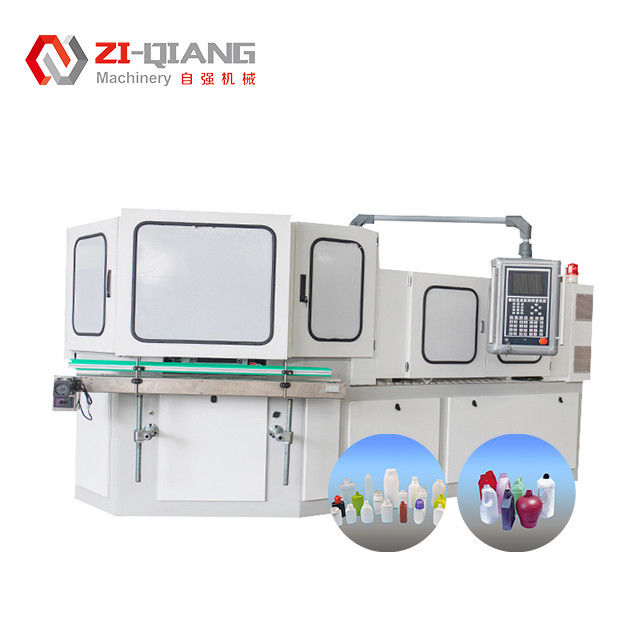

| 브랜드 이름: | ZI QIANG |
| 모델 번호: | ZQ 40 |
| MOQ: | 1 |
| 가격: | 30000 USD |
| 지불 조건: | t/t |
| Item | Unit | ZQ40 |
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 40 |
| Screw L/D | % | 21:1 |
| Injection weight | g | 140 |
| Heating power | KW | 7.5 |
| Number of barrel zone | 3+N | |
| Injection stroke | mm | 120 |
| Clamping System | ||
| Clamping force of injection | KN | 400 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 60 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |

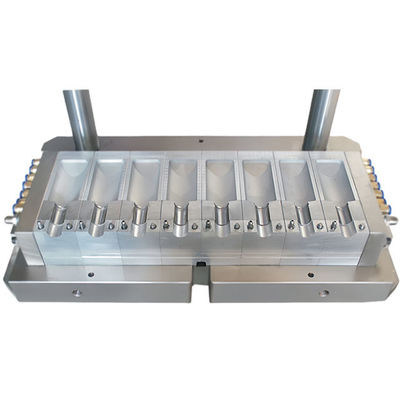

| Mould | ||
| Max.Platen size(L*W) | mm | 480*340 |
| Mold thickness | mm | 180 |

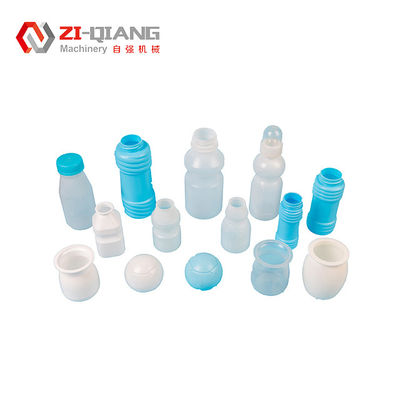

| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 220 |
| Hydraulic system | ||
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 11 |
| Dry cycle | S | 4 |
| Total Power | KW | 20 |
| Operating power | % | 52-70 |
| Others | ||
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 3*1.3*1.7 |
| Net weight | Ton | 3.8 |
|
